RockLock™: The Adjustable Arm Safety System That’s Changing the Industry
Handle and Move Massive Stone Slabs—Without the Massive Risk
The RockLock™ TAF 30 is the industry’s strongest safety frame for transporting stone slabs on flatbed trucks. Engineered to secure up to 30 slabs with zero tipping, shifting, or guesswork, it delivers four layers of built-in protection to safeguard your crew and your cargo:
Undermount Bolt-On System – Heavy-duty mounting bar bolts through the truck bed, locking the frame in place with zero movement.
RockLock™ Adjustable Arms – Patented locking arms secure each slab individually to prevent tipping during loading, unloading, or transit.
Barrier Poles – Upright containment poles prevent lateral shifting and provide added slab support from both sides.
Collision Barrier Bar – A front-facing steel bar shields the truck cab by stopping slabs from entering the driver’s space in the event of a sudden stop or crash.
This isn’t just a rack—it’s a fully integrated slab transport safety system trusted by industry professionals who refuse to compromise on safety.
Transporting Slabs on Flatbeds? One Mistake Can Cost Everything.
Regularly, fabricators and distributors load full-size slabs onto flatbeds with ratchet straps, wooden A-frames, and crossed fingers. The result?
Workers crushed while loading and unloading
Tipped slabs on the interstate
Broken and shattered inventory
Large spills causing dangerous messes and expensive cleanups
OSHA violations, fines, and lawsuits
Semi-truck granite spill on I-24 causes massive delays.
One incident can shut down your operation, destroy your margins, or worse—take a life.

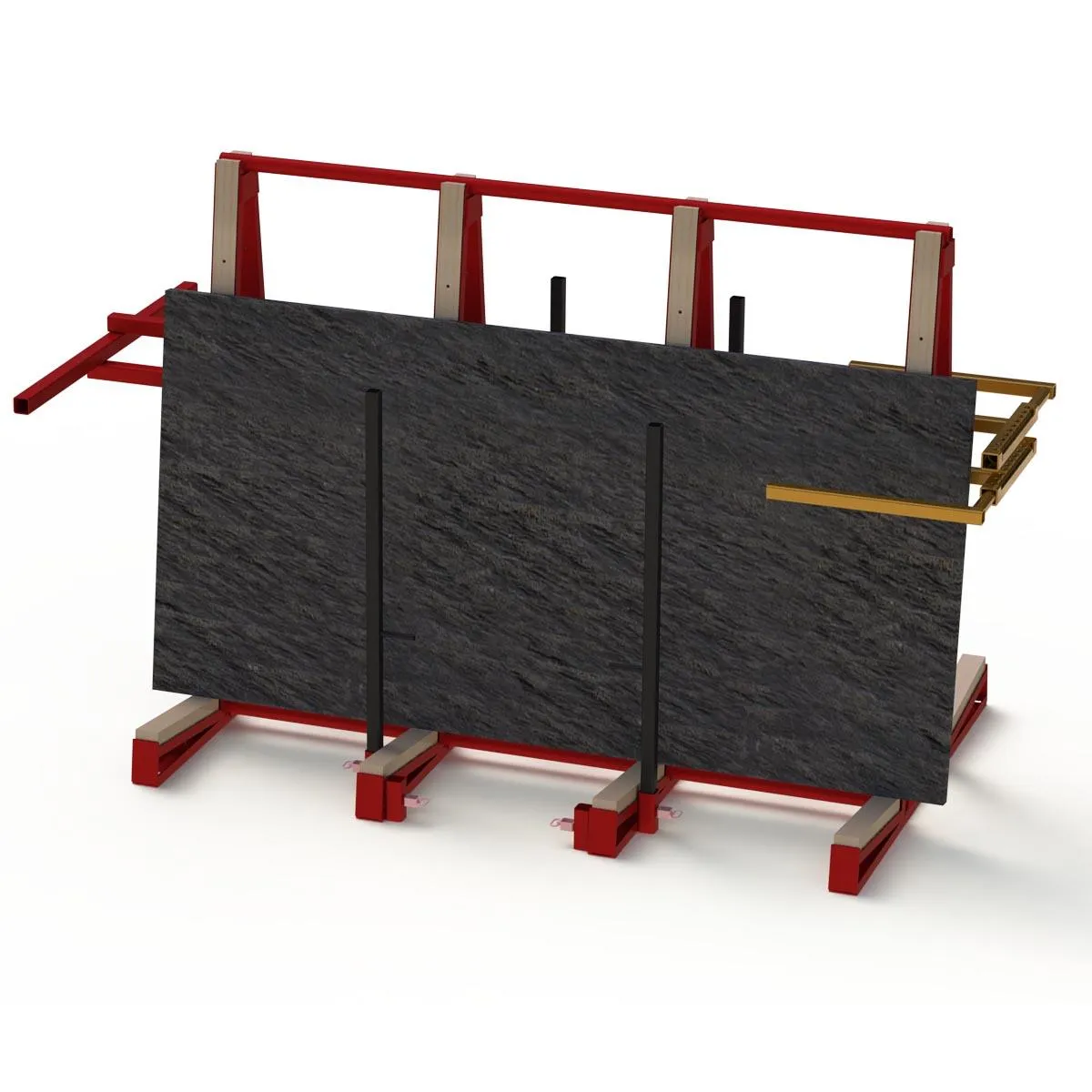

Meet the RockLock™ TAF 30 System
The Gold Standard in Flatbed Slab Transport
The RockLock™ TAF 30 is our flagship transport safety product—purpose-built for flatbeds up to 53 ft. With integrated RockLock™ arms, adjustable safety poles, and a driver-protection barrier bar, this frame was designed by stone handlers, for stone handlers.
✅ Holds up to 30 slabs / 36,000 lbs
✅ RockLock™ Patented Locking System
✅ Heavy-duty U.S. Steel – Powder-Coated
✅ Adjustable Poles + Collision Barrier
✅ Top or Undermount Options
✅ Hands-on Safety—No Electronics or Hydraulics.
How RockLock™ Keeps Every Slab Secure
Adding a Slab:
➡️ The locking arm is temporarily raised while the slab is guided in
➡️ As soon as the slab is seated, the arm drops to secure it
Removing a Slab:
➡️ The slab is lifted by forklift or crane
➡️ Once clear, the locking arm immediately protects remaining slabs
Result:
➡️ At no time is a slab unsecured.
Specs & Details
Key Features
Controlled Slab Transfer
- RockLock™ arms disengage only when a slab is within one foot and secured by forklift or crane
- Prevents tipping or falling during slab handlingFour Layers of Protection
RockLock™ Arms: Secure each slab individually to prevent tipping during transport and handling
Undermount Bolt-On System: Anchors the A-frame securely to the truck bed using high-tensile bolts and steel bars
Barrier Poles: Side containment poles provide added support and reduce risk of lateral shifting
Collision Safety Bar: Forward-facing bar blocks slabs from entering the truck cab in the event of a sudden stop or crash

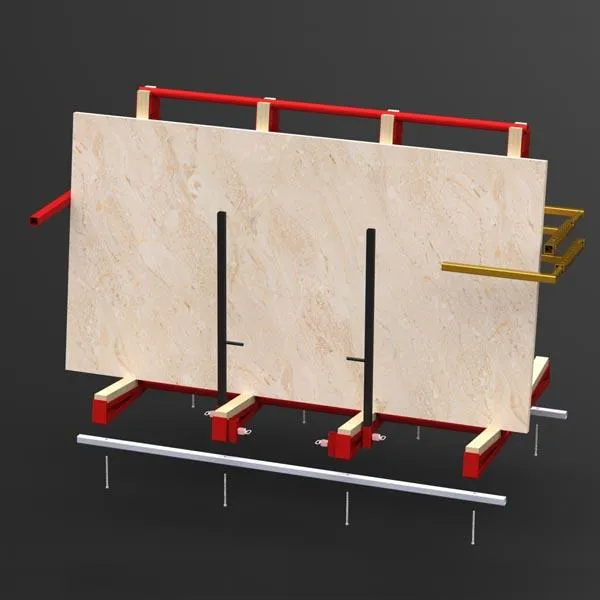

Dual Mounting Options

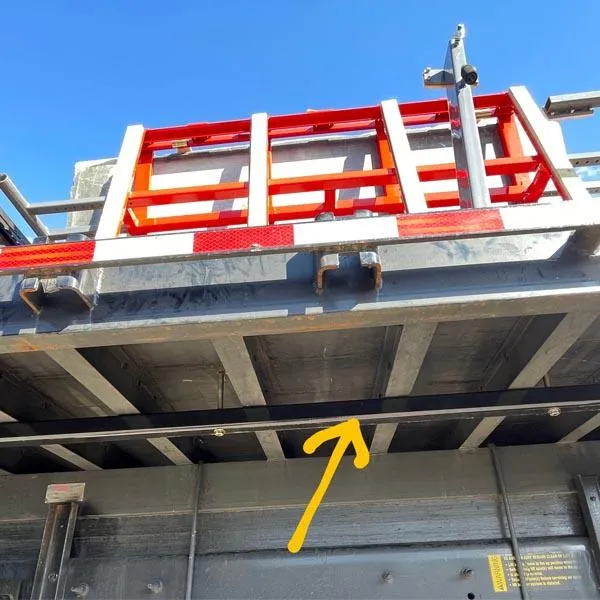

- Undermount: Through-bed bolt system using high-tensile bolts and steel bars (permanent use)
- Top Mount: Side-clamp configuration for semi-permanent or occasional useCore Advantages
✅ 36,000 lb load capacity
✅ RockLock™ Patented Safety System
✅ Built from heavy-gauge U.S. steel
✅ Corrosion-resistant powder coat (Safety Red / Stone Grey) Customer custom color -Optional
✅ Reduces risk of injury and slab damage
✅ Designed for secure truck integration
Specifications
Model ID: SSH-M30-TRK
Load Capacity: 36,000 lbs (16,329 kg) 30 slabs
Construction: Heavy-Gauge U.S. Steel
Finish: Powder-Coated (Safety Red / Grey)
Locking Mechanism: Patented RockLock™ System
Mounting: Top & Bottom
Weight: 1,300 lbs
Front A Frame Length: 130" (with Collision Bar)
Rear A Frame Length: 112" (without Collision Bar)
Width: 72 inches
Height: 82 inches
Why Flatbed Pros Choose the TAF 30
Built to Protect Your People: RockLock secures and prevents slabs from tipping during loading or unloading
Built to Survive the Road: Withstand sharp turns, potholes, panic stops, and accidents
Protect Your Team: Collision bar and controlled slab handling = fewer injuries
Compliance Without Compromise: Supports OSHA, ANSI, and insurance requirements
One-Time Install, Lifetime Results: Bolt it once, secure every load
Integrates Seamlessly Into Your Flatbed Fleet
Whether you run one truck or an entire fleet, the TAF 30 can be installed as a permanent fixture or semi-permanent solution. It's made to bolt on quickly—and stay tough for the long haul.
Fleet-ready design
DIY installation kits standard or professional install support upon request
Custom colors for branded equipment (optional)
Ready to Prevent the Next Incident?
The safest slab you handle and transport… is the one protected by RockLock™
Don’t wait until an accident happens. Let us help you upgrade your transport safety—before a costly mistake puts your team or your business at risk.
FAQS
What makes Safe Stone Handling’s equipment different?
Our patented RockLock™ Safety Arm System and Vertical Support Posts are engineered to prevent slabs from tipping or falling during loading, unloading, and transport. Unlike traditional A-frames, our products are designed to survive sudden stops and collisions, protecting your team and your cargo.
Who is this equipment designed for?
Safe Stone Handling solutions are made for slab importers, wholesalers, distributors, and fabricators—any company that transports, warehouses, or installs large stone slabs.
Can your A-frame systems fit my existing trucks or trailers?
Yes! Our systems are designed for easy “bolt-on” and HD Tie Down Chain Binders installation to fit most truck beds, semi-trailers, and even smaller transport equipment.
Will this really reduce injuries and insurance claims?
Absolutely. Our engineered systems dramatically reduce the risk of slab falls, which are a leading cause of injuries and fatalities in the industry. Investing in safer equipment protects your people, reduces worker’s compensation claims, and protects your bottom line.
Is this equipment expensive?
While there’s a premium for high-quality, U.S.-made equipment, the cost is small compared to the savings from fewer injuries, reduced product damage, and avoiding legal liabilities.
How soon can I get Safe Stone Handling equipment?
Production capacity is available now, and limited quantities are ready for immediate shipment. Contact us today to check availability.
Can I talk to someone or schedule a consultation?
Yes! You can:
📅 Book a Free Safety Assessment
💬 Chat with us live or use our AI Safety Bot
