Standard Truck A-Frame with RockLock
Engineered Slab Transport for Trucks
The first safe way of handling and holding stone slabs.

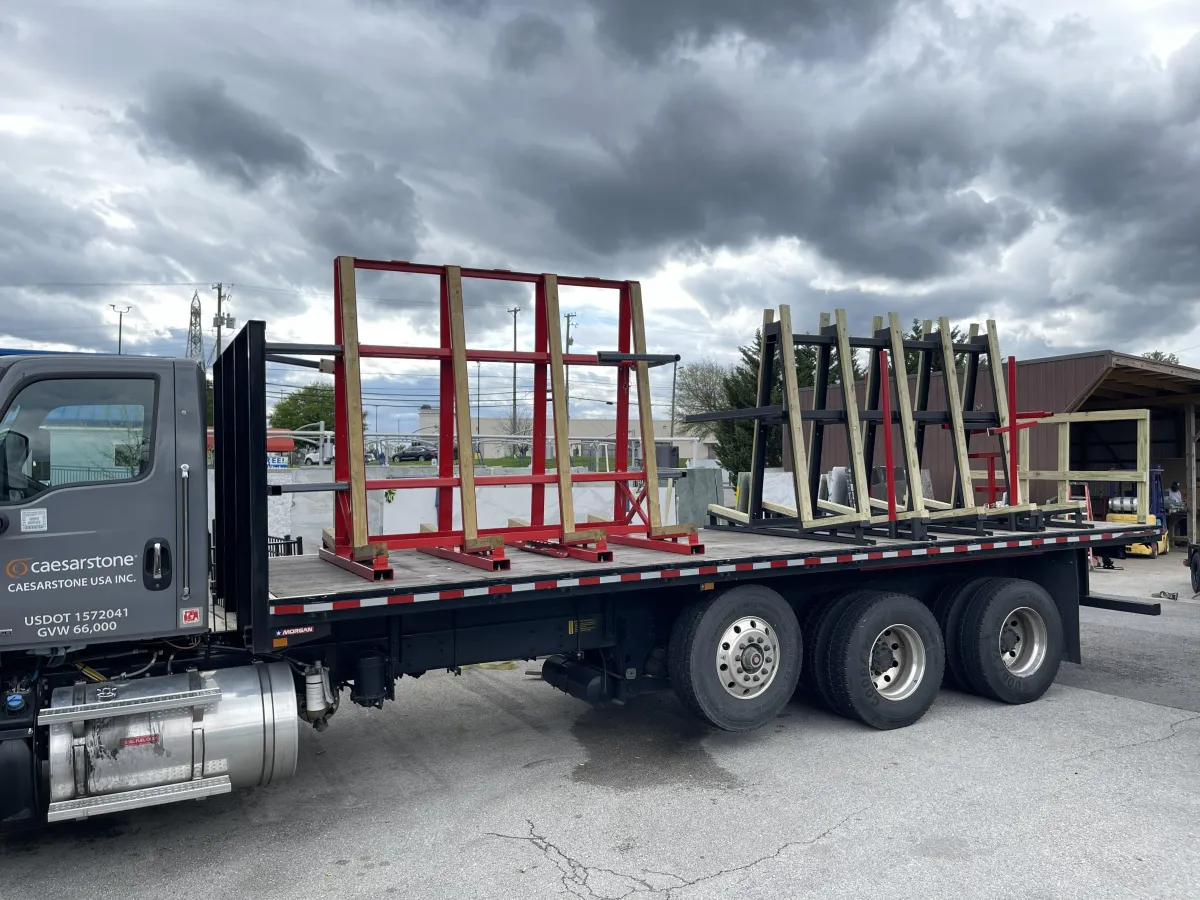

The SAFE Truck A-Frame with RockLock™ is a heavy-duty truck-mounted system engineered specifically for the transportation, loading and unloading of stone slabs.
Developed by an engineer with 30+ years of industry experience solving slab handling challenges.
Its primary safety feature is the patented RockLock™ mechanism, which mechanically stabilizes the slab load during loading and unloading. For road transportation, conventional straps secure the slabs on each side of the A-frame. Heavy-duty round tubing at upper and lower strap-contact areas helps reduce strap wear and potential tearing.
An integrated Collision Bar provides additional forward protection between the slab load and truck cab, while removable Barrier Poles provide an additional level of protection should a transport strap fail.
Engineering Overview: Standard Truck A-Frame with RockLock

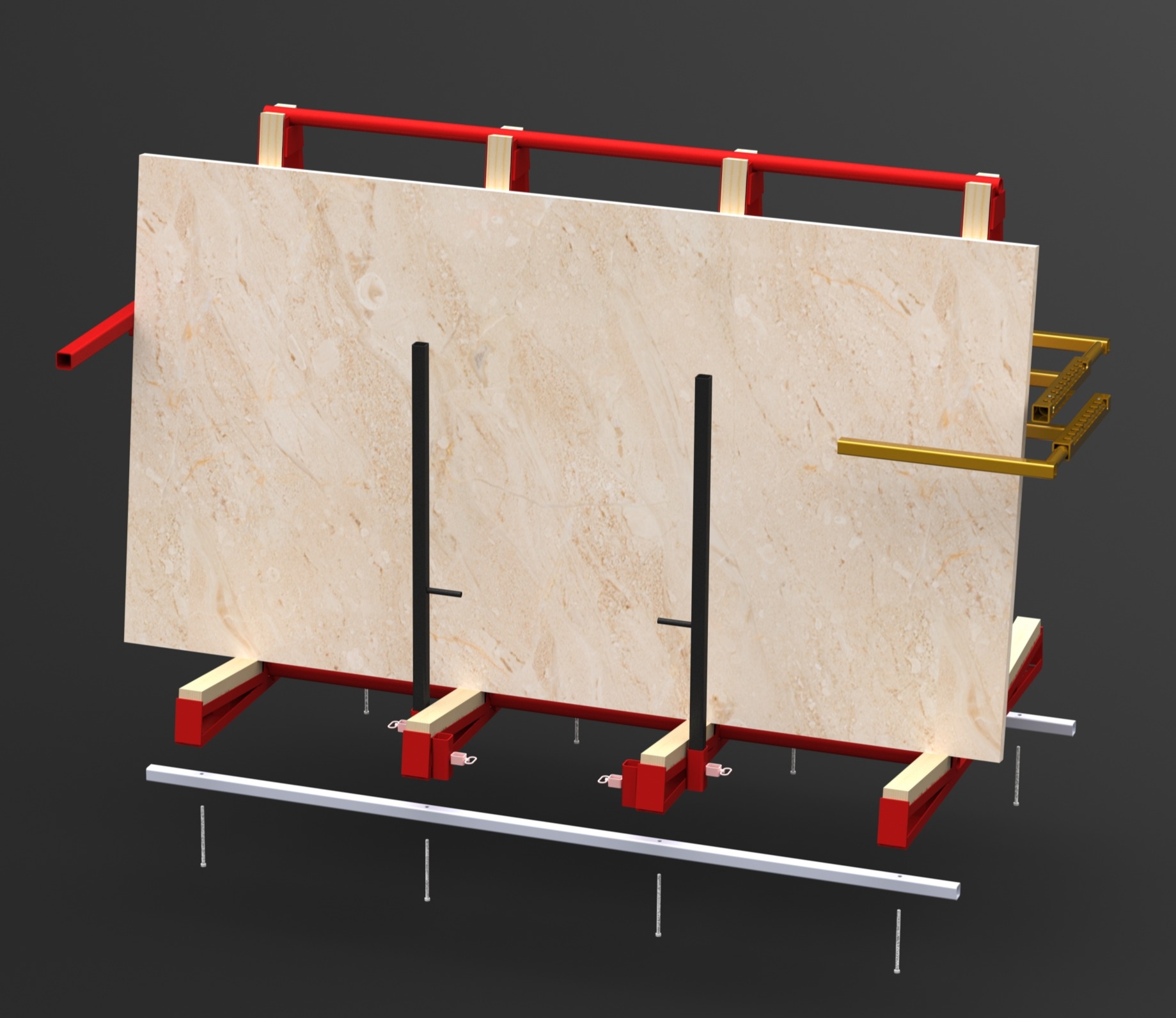

Meet the Standard Truck A-Frame with RockLock
Integrated Mechanical Compression for Controlled Slab Transport
Safety Features
✅ Collusion Bar - prevents slabs from sliding into the driver's cab
✅ Patented RockLock™ stabilization during loading and unloading.
✅ Purpose-built specifically for stone slab transportation.
✅ Undermount for Permanent stone hauling and Top-mount for temporary hauling.
✅ Heavy-duty structural steel construction.
✅ Integrated Collision Bar provides additional forward protection.
✅ Barrier Poles provide secondary protection in the event of strap failure.
✅ Heavy-duty round tubing at upper and lower strap-contact areas helps reduce strap wear and tearing.
✅ Replaceable wood slab-contact surfaces.
✅ Integrated ladder storage.
✅ Complete transportation and handling safety system rather than a conventional A-frame alone.
✅ Made in the USA
How it works
1. During loading, raise the RockLock™ arm only enough to allow the incoming slab to be placed against the existing load.
2. Immediately lower the RockLock™ arm against the outer slab. The arm engages its adjustable locking position and restricts outward movement.
3. Repeat the RAISE → LOAD → LOWER → SECURE sequence with every incoming slab.
4. After loading, position the Barrier Poles and secure the load with conventional transport straps on each side.
5. During unloading, keep RockLock™ engaged until the outermost slab is ready to be removed. Raise the arm, remove the slab, and immediately lower the arm against the next remaining slab.
6. Repeat the RAISE → REMOVE → LOWER → SECURE sequence until unloading is complete.
Applications
· Stone distributors
· Stone importers
· Fabricators
· Countertop companies
· Slab delivery operations
· Granite, marble, quartz and other stone slab transportation
Engineering Specifications & Performance Data
Model: SSH SL TAF-30
Application: Truck slab transport system
Item
Model
Capacity
Approx. Slab Capacity
Length
Width
Height
Approx. Weight
Construction
Finish
Slab Stabilization
Transport Securement
Strap Protection
Additional Protection
Permanent Mounting
Removable Mounting
Power Required
Specification
SSH TAF-30
36,000 lb per A-frame
30 slabs
132 in
72 in
84 in
1,300 lb
Heavy-duty structural steel
Powder coated
Patented RockLock™
Conventional transport straps
Heavy-duty round tubing at upper and lower strap-contact areas
Collision Bar and removable Barrier Poles

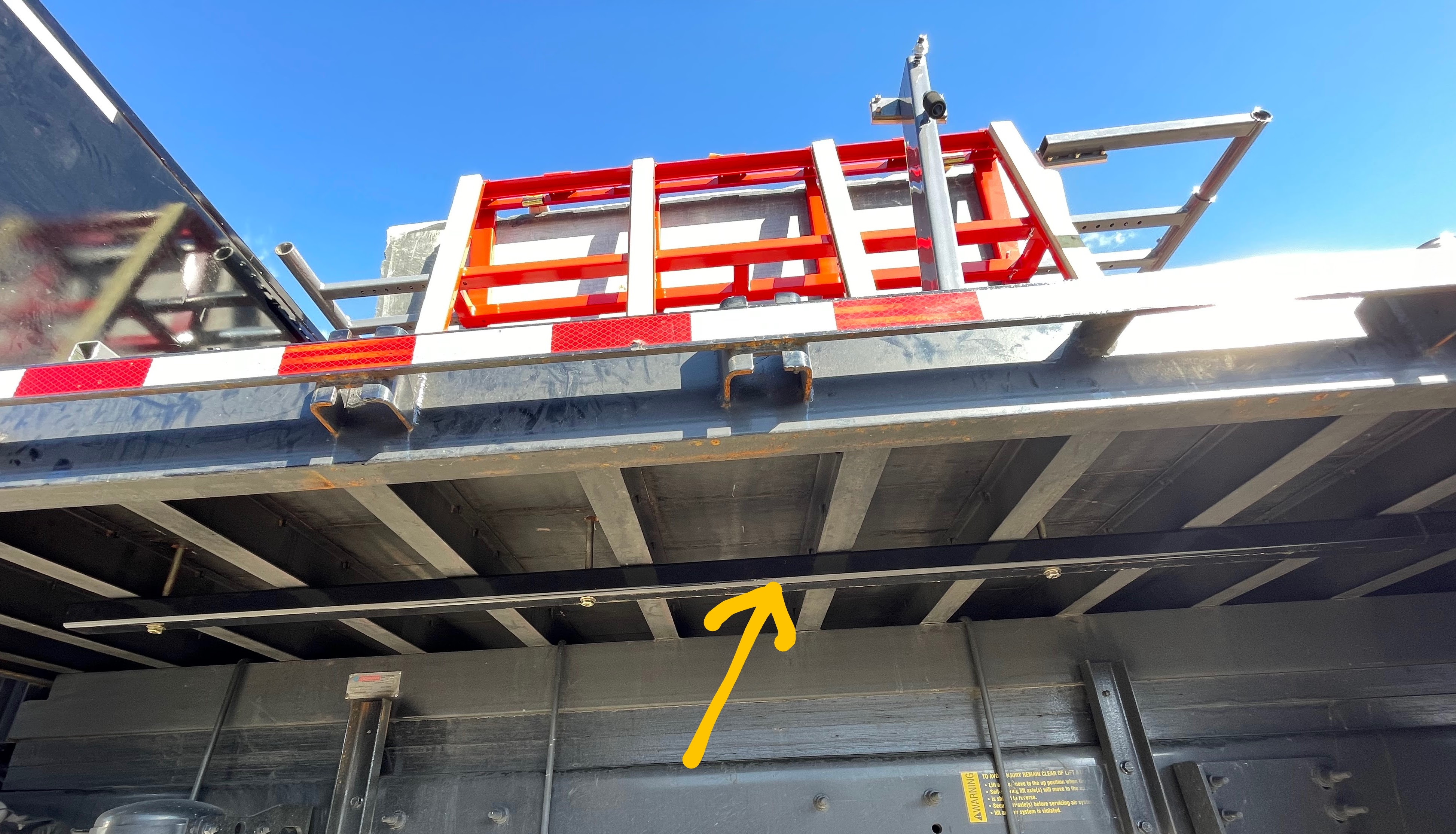

Through truck bed to heavy-duty structural tubing below
Top-mounted using heavy-duty chain ratchet binders connected to welded D-rings
None
