Controlled lifting and precise alignment for integrated stone sinks
The Integrated Stone Sink Lift from Safe Stone Handling provides a practical way to load, move, raise and align heavy stone sinks beneath a countertop. With a 400 lb capacity, it combines a wheeled scissor lift with a padded support frame, four independently adjustable corner supports and three lateral adjustment eyebolts.
Developed by an engineer with 30+ years of industry experience solving slab handling challenges.
Installation difficulty can add substantial labor and cost to integrated stone sinks. Supporting a heavy sink inside a confined cabinet while aligning its mitered edges is difficult without a suitable support structure. We developed this device to address that challenge: load the sink outside the cabinet, roll it into position and make controlled adjustments from below.
By simplifying handling and reducing the need for improvised installation supports, the system is designed to help fabricators reduce installation effort and cost, with the potential to make integrated stone sinks more affordable for their customers. It extends Safe Stone Handling’s focus on protecting people and stone throughout the handling and installation process.

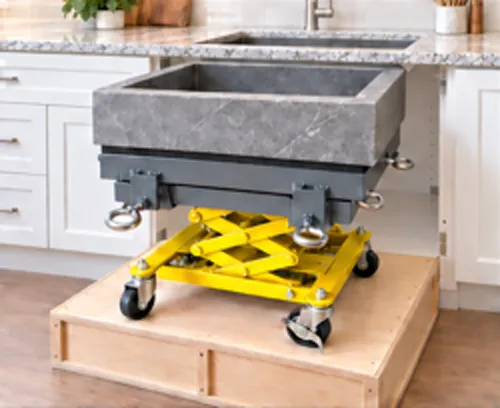

Meet the Integrated Stone Sink LIft
🔩 Safety Features & Advantages
✅ 400 lb capacity for lifting and positioning stone sinks.
✅ Loading outside the cabinet provides easier access around the sink.
✅ Mechanical support reduces the need to hold a heavy sink manually during alignment.
✅ Four screw-adjustable roller-ball supports independently level each corner.
✅ Roller balls allow the upper frame and sink to move horizontally in all directions.
✅ Three lateral eyebolts fine-tune left-right and front-back positioning.
✅ Padded contact surfaces help protect the stone during positioning.
✅ Reusable lifting device is lowered and removed after the sink is independently secured.
How to use the Integrated Stone Sink Lift
1 Position Loading Box
Position a sturdy wooden loading box directly in front of the open cabinet. Its top must be flush with the cabinet’s inside floor, providing a level transition for the wheels. The illustrated installation uses a 4½-inch-high platform.
2 Place Lift on Box
Place the empty lifting device directly onto the wooden box, with all four wheels fully supported. Lower the frame and align the device with the cabinet opening. Allow sufficient clearance for the loaded sink to pass beneath the countertop.
3 Load Stone Sink
Using suitable lifting assistance, place the sink centrally on the padded support frame. Loading outside the cabinet gives installers access around the sink and avoids having to place it on the lift within the confined cabinet interior.
4 Roll Into Cabinet
Carefully roll the loaded device from the wooden box into the cabinet across the flush transition. Keep the sink lowered and clear of the countertop and cabinet sides while moving it into position beneath the opening.
5 Raise Level and Align
Raise the sink toward the countertop using the scissor lift. Adjust the four vertical corner screws to match the countertop’s level. The roller balls support horizontal movement; use the three lateral eyebolts to fine-tune left-right and front-back alignment. Bring the matching 45-degree mitered edges together with controlled upward movement.
6 Installation Complete
Once the sink is independently secured, lower the support frame and roll the empty lift back onto the wooden box for removal. The completed sink remains installed beneath the countertop. The illustration shows its approximately 9-inch-deep body extending into the cabinet.
Applications
· Stone fabrication facilities and countertop installation crews.
· Integrated natural and engineered stone sinks for residential and commercial countertops.
· Mitered sink installations requiring supported lifting, leveling and lateral alignment.
Engineering Specifications & Performance Data
Item
Load capacity
Lifting system
Corner leveling
Lateral positioning
Sink support
Mobility
Illustrated installation
Specification
400 lb
Scissor-lift mechanism
Four independently screw-adjustable
roller-ball supports
Three eyebolts for left-right and
front-back adjustment
Padded upper frame supported on roller balls
Four caster wheels
Cabinet interior approximately 34 × 22 in;
platform height 4½ in; sink depth
approximately 9 in
