Porcelain Lift & Tilt
Controlled lifting and tilting for large-format porcelain panels
Controlled Lifting
The Porcelain Lift & Tilt is an aluminum handling system engineered for large-format porcelain panels up to 130 × 64 inches.
Developed by an engineer with 30+ years of industry experience solving slab handling challenges.
Multiple adjustable vacuum-cup positions allow the system to accommodate different panel sizes, while remote-controlled operation enables controlled lifting and transition from horizontal to vertical.
Meet the Porcelain Lift & Tilt
🔩 Safety Features & Advantages
✅ Handles countertops and large islands weighing up to 1,100 lb.
✅ Handles panels up to 130 × 64 in.
✅ 4-6 vacuum cups provide multiple support points.
✅ Multiple cup positions accommodate different panel dimensions.
✅ Remote-controlled operation.
✅ Controlled horizontal-to-vertical movement.
✅ Heavy-duty aluminum construction.
✅ Forklift operated.
✅ Designed to reduce manual handling of large fragile panels.
How to use the Porcelain Lift & Tilt

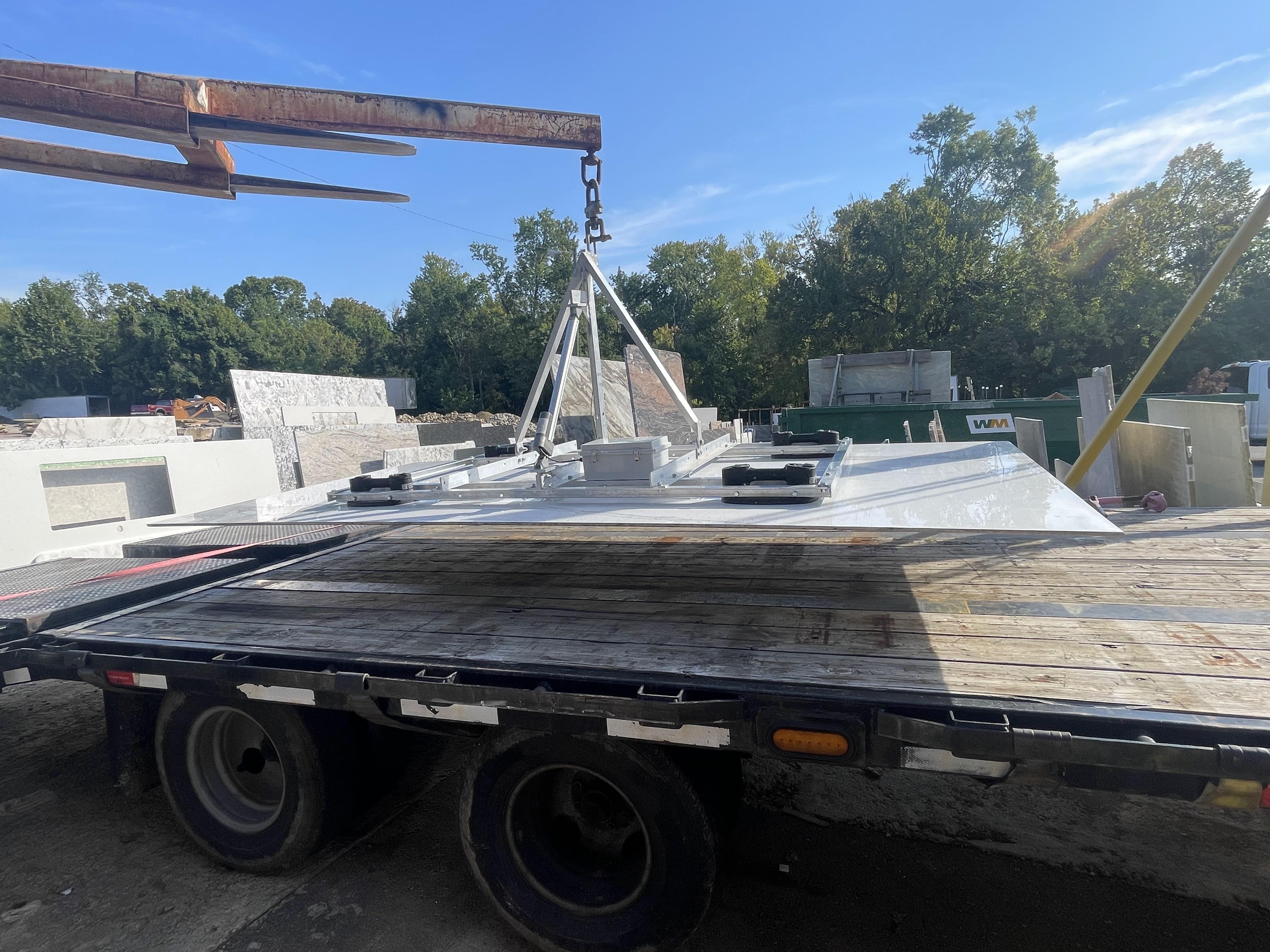

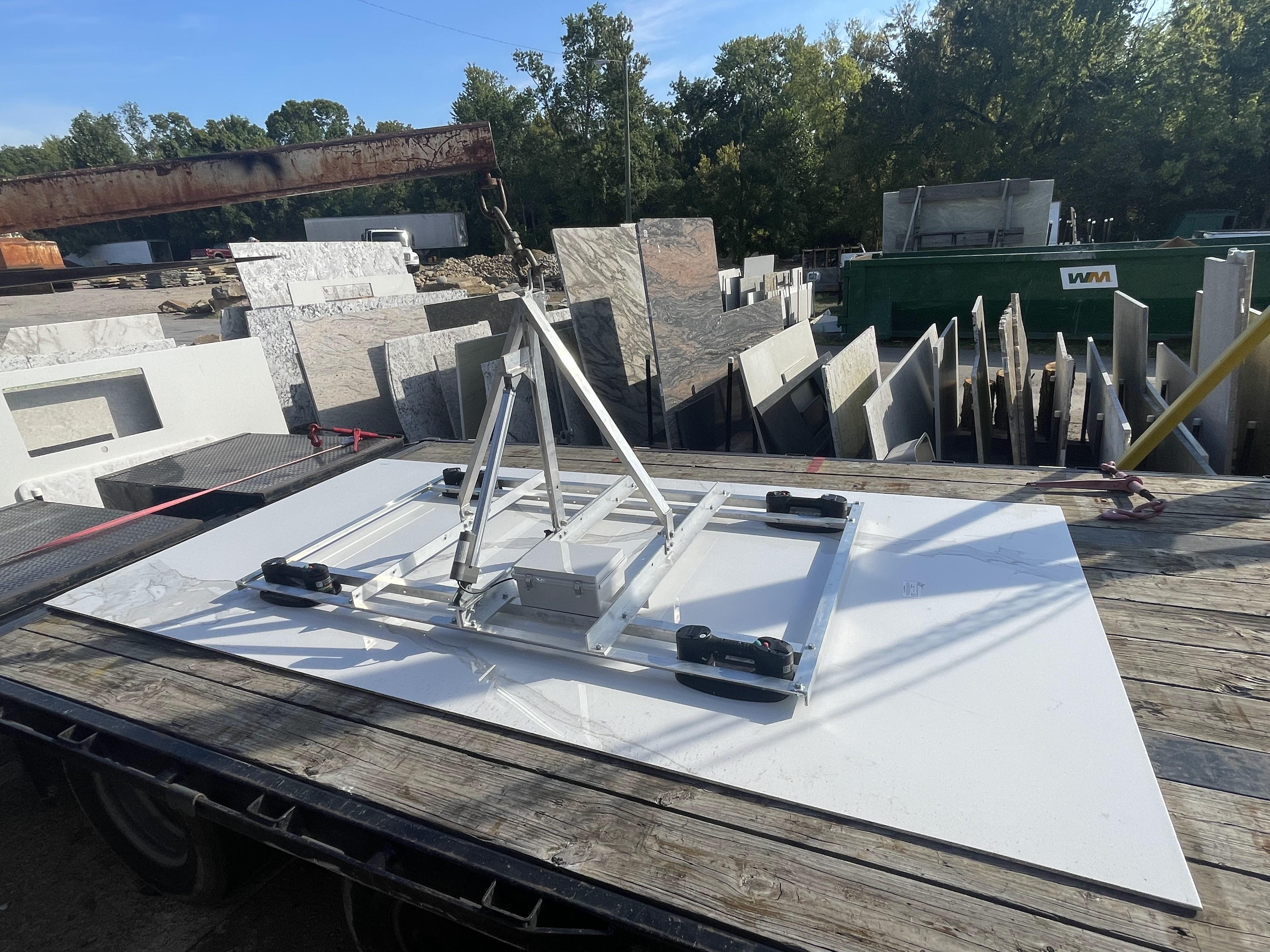

1. Position the aluminum frame over the horizontal panel.
2. Adjust the vacuum cups to suitable support positions for the panel size.
3. Engage the 4-6 vacuum suction cups.
4. Lift the panel using the forklift.
5. Use the remote-controlled system to transition the panel from horizontal toward vertical.
6. Position the panel onto the receiving A-frame or rack.
Applications
· Large-format porcelain panels
· Ultra-compact panels
· Stone and porcelain panel importers
· Distributors
· Fabricators
· Retail slab and panel operations
Engineering Specifications & Performance Data
Item
Maximum Panel Size
Frame Construction
Suction System
Suction Cup Positioning
Operation
Tilt Function
Control
Specification
130 × 64 in
Heavy-duty aluminum
4-6 vacuum suction cups
Multiple adjustable vacuum-cup positions
Forklift operated
Controlled horizontal-to-vertical positioning
Remote controlled
